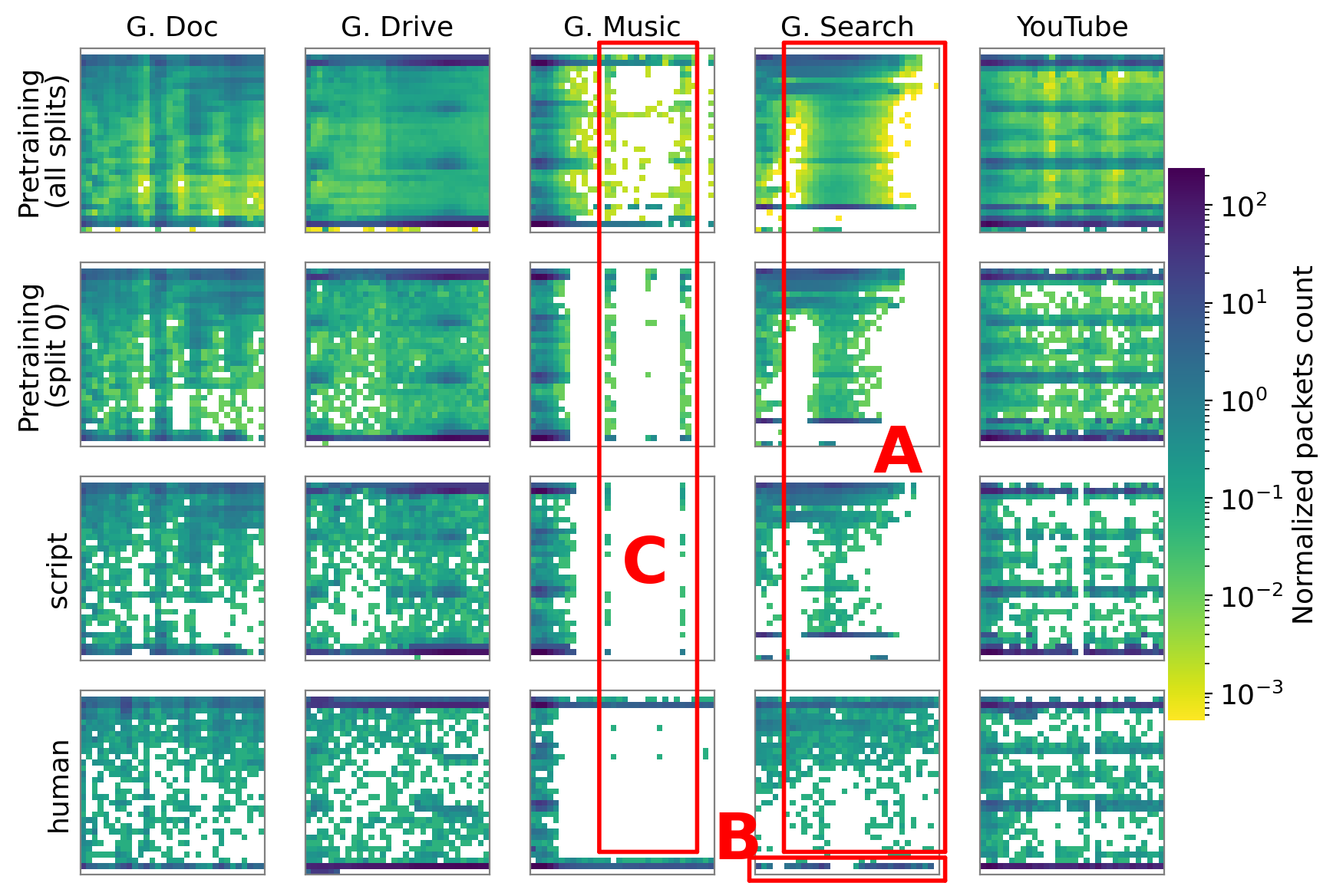

Figure 4: Average 32x32 flowpic for each class across multiple data splits.¶
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns
from matplotlib.colors import LogNorm, Normalize
%matplotlib inline
%config InlineBackend.figure_format='retina'
# load unfiltered dataset
dset = dataprep.FlowpicDataset(
data=tcb.load_parquet(tcb.DATASETS.UCDAVISICDM19),
timetofirst_colname="timetofirst",
pkts_size_colname="pkts_size",
pkts_dir_colname="pkts_dir",
target_colname="app",
flowpic_dim=FLOWPIC_DIM,
flowpic_block_duration=FLOWPIC_BLOCK_DURATION,
)
# load the first train split
dset_train_split = dataprep.FlowpicDataset(
data=tcb.load_parquet(tcb.DATASETS.UCDAVISICDM19, split=0),
timetofirst_colname="timetofirst",
pkts_size_colname="pkts_size",
pkts_dir_colname="pkts_dir",
target_colname="app",
flowpic_dim=FLOWPIC_DIM,
flowpic_block_duration=FLOWPIC_BLOCK_DURATION,
)
def compute_average_flowpic(df):
# gather all (precomputed) flowpic
# in a single tensor (n x dim x dim)
# and do an avereage across the 1st dimension
mtx = np.stack(df["flowpic"], axis=0).mean(
axis=0, keepdims=True
) # .astype(np.uint8)
return mtx
TARGETS_LABEL = sorted(dset.df["app"].unique())
PARTITIONS_NAME = sorted(dset.df["partition"].unique())
CLASSES_RENAME = {
"google-doc": "G. Doc",
"google-drive": "G. Drive",
"google-search": "G. Search",
"google-music": "G. Music",
"youtube": "YouTube",
}
average_flowpic = dict()
for partition_name in [
"pretraining",
"train-split",
"retraining-script-triggered",
"retraining-human-triggered",
]:
if partition_name != "train-split":
df_partition = dset.df[dset.df["partition"] == partition_name]
else:
df_partition = dset_train_split.df
average_flowpic[partition_name] = dict()
for target in TARGETS_LABEL:
df_app = df_partition[df_partition["app"] == target]
mtx = compute_average_flowpic(df_app).squeeze()
average_flowpic[partition_name][target] = mtx
mtx_min = 100
mtx_max = -100
for partition_name, app in itertools.product(
[
"pretraining",
"train-split",
"retraining-script-triggered",
"retraining-human-triggered",
],
TARGETS_LABEL,
):
mtx = average_flowpic[partition_name][app]
nonzero = mtx.flatten()
nonzero = nonzero[nonzero > 0]
if nonzero.min() < mtx_min:
mtx_min = nonzero.min()
if mtx.max() > mtx_max:
mtx_max = mtx.max()
# mtx_min, mtx_max
mpl.rcParams.update({"font.size": 13})
fig, axes = plt.subplots(nrows=4, ncols=5, figsize=(8, 6), sharex=True, sharey=True)
cbar_ax = fig.add_axes([0.97, 0.2, 0.03, 0.6]) # (left, bottom, width, height)
cbar_ax.set_ylabel("packets size normalized frequency")
for i, ax, (partition_name, app) in zip(
range(len(axes.flatten())),
axes.flatten(),
itertools.product(
[
"pretraining",
"train-split",
"retraining-script-triggered",
"retraining-human-triggered",
],
TARGETS_LABEL,
),
):
mtx = average_flowpic[partition_name][app]
sns.heatmap(
ax=ax,
data=np.where(mtx == 0, np.nan, mtx),
vmin=mtx_min,
vmax=mtx_max,
cbar=i == 0,
cmap=plt.get_cmap("viridis_r"),
square=True,
norm=LogNorm(mtx_min, mtx_max),
cbar_ax=None if i else cbar_ax, # <19
cbar_kws=dict(label="Normalized packets count"),
)
# ax.set_title(target)
for pos in ("top", "bottom", "right", "left"):
ax.spines[pos].set_color("gray")
ax.spines[pos].set_visible(True)
ax.xaxis.set_visible(False)
ax.yaxis.set_ticks([], None)
ax.set_ylabel("")
for ax, app in zip(axes[0], TARGETS_LABEL):
ax.set_title(CLASSES_RENAME[app], fontsize=13)
for ax, partition_name in zip(
axes[:, 0],
["Pretraining\n(all splits)", "Pretraining\n(split 0)", "script", "human"],
):
ax.set_ylabel(partition_name, fontsize=13)
### annotations
patches = [
######### A #########
# vertical
mpl.patches.ConnectionPatch(
xyA=(5, -1),
coordsA=axes[0][3].transData,
xyB=(5, 28),
coordsB=axes[3][3].transData,
),
mpl.patches.ConnectionPatch(
xyA=(33, -1),
coordsA=axes[0][3].transData,
xyB=(33, 28),
coordsB=axes[3][3].transData,
),
# horizontal
mpl.patches.ConnectionPatch(
xyA=(5, -1),
coordsA=axes[0][3].transData,
xyB=(33, -1),
coordsB=axes[0][3].transData,
),
mpl.patches.ConnectionPatch(
xyA=(5, 28),
coordsA=axes[3][3].transData,
xyB=(33, 28),
coordsB=axes[3][3].transData,
),
######### B #########
# vertical
mpl.patches.ConnectionPatch(
xyA=(-1, 29),
coordsA=axes[3][3].transData,
xyB=(-1, 33),
coordsB=axes[3][3].transData,
),
mpl.patches.ConnectionPatch(
xyA=(33, 29),
coordsA=axes[3][3].transData,
xyB=(33, 33),
coordsB=axes[3][3].transData,
),
# horizontal
mpl.patches.ConnectionPatch(
xyA=(-1, 29),
coordsA=axes[3][3].transData,
xyB=(33, 29),
coordsB=axes[3][3].transData,
),
mpl.patches.ConnectionPatch(
xyA=(-1, 33),
coordsA=axes[3][3].transData,
xyB=(33, 33),
coordsB=axes[3][3].transData,
),
######### C #########
# vertical
mpl.patches.ConnectionPatch(
xyA=(12, -1),
coordsA=axes[0][2].transData,
xyB=(12, 28),
coordsB=axes[3][2].transData,
),
mpl.patches.ConnectionPatch(
xyA=(29, -1),
coordsA=axes[0][2].transData,
xyB=(29, 28),
coordsB=axes[3][2].transData,
),
# horizontal
mpl.patches.ConnectionPatch(
xyA=(12, -1),
coordsA=axes[0][2].transData,
xyB=(29, -1),
coordsB=axes[0][2].transData,
),
mpl.patches.ConnectionPatch(
xyA=(12, 28),
coordsA=axes[3][2].transData,
xyB=(29, 28),
coordsB=axes[3][2].transData,
),
]
for p in patches:
p.set(color="red", linewidth=2)
fig.add_artist(p)
fig.text(0.73, 0.47, "A", color="red", fontweight="bold", fontsize=30)
fig.text(0.6, 0.05, "B", color="red", fontweight="bold", fontsize=30)
fig.text(0.525, 0.35, "C", color="red", fontweight="bold", fontsize=30)
plt.savefig(
"ucdavis_dataset_different_partition.png",
bbox_inches="tight",
pad_inches=0.05,
dpi=300,
)
plt.tight_layout()
/tmp/ipykernel_19221/3453343292.py:122: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
plt.tight_layout()
